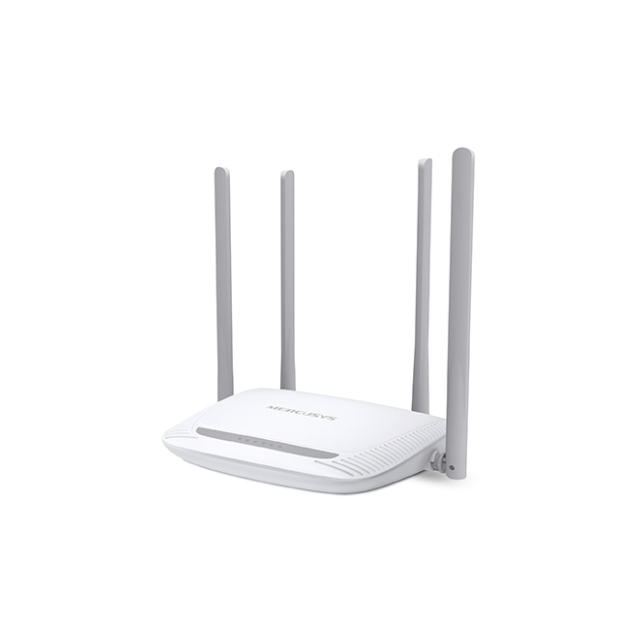

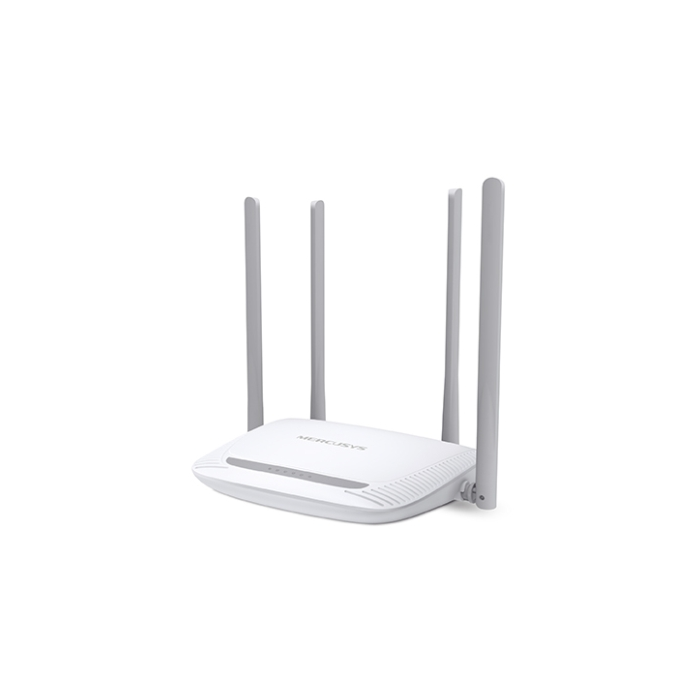

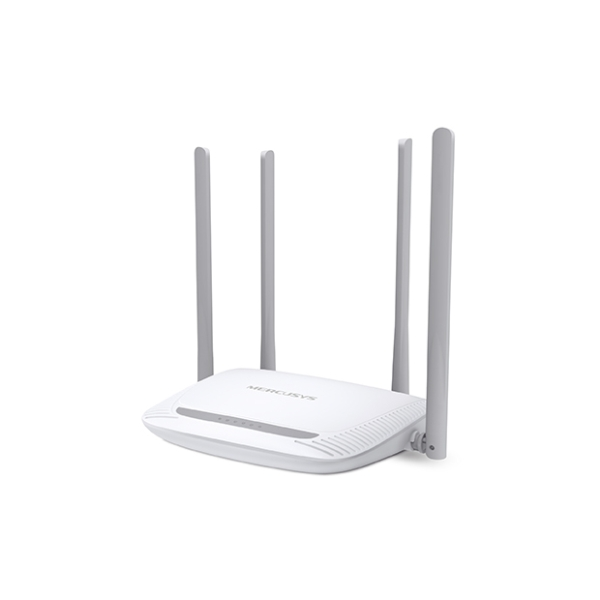

MERCUSYS MW325R - N300 WiFi Router, 4 antény

Maximum coverage – four 5dBi antennas provide up to 500m2 of wireless coverage Enhanced signal – high gain antennas dramatically increase wireless signal strength, size and stability 300Mbps wireless speed - ideal for HD streaming, online gaming, and large file downloads Easy installation - intuitive webpage guides you through the setup process in minutes *Range speci?cations are based on performance test results. Real performance varies in accordance with applications and environmental conditions. Specification: Dimensions (W X D X H) 167 x 118 x 33 mm Interfaces 4 10/100Mbps LAN ports 1 10/100Mbps WAN port Button Reset button External Power Supply 9VDC/0.6A Antenna Type 4 x 5dBi fixed omni directional antennas Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4 - 2.4835GHz Signal Rate 11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) Reception Sensitivity 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER Certifications CE, ROHS Package Contents 300Mbps Enhanced Wireless N Router MW325R Power adapter Quick installation guide Ethernet cable Environment Operating temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing Transmission Power <20dBm Wireless Security WPA-PSK / WPA2-PSK Wireless Functions WDS bridge WAN Type Dynamic IP/Static IP/PPPoE Management Access control Local management Remote management DHCP Server Port Forwarding Virtual server, UPnP, DMZ Dynamic DNS Oray Firewall Security IP and MAC address binding Protocols IPv4 Guest Network 2.4GHz guest network Up to 500 m2 of Wi-Fi Coverage The MW325R creates an expansive wireless network that is capable of covering your home with up to 500m2 of wireless coverage. You can enjoy reliable, high performance connections in the living room, the bedroom, or even the backyard. * Range specifications are based on performance test results. Real performance varies in accordance with application and environmental conditions. Four 5dBi Antennas By combining 2x2 MIMO Technology and four high gain antennas, the MW325R is able to significantly increase its signal transmission and reception capabilities. This means that you do not have to worry about lag or dropped connections while enjoying online gaming and streaming video. Three-Step Installation With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your MW325R in minutes. Network Security Comprehensive security features help your devices form safe connections to the MW325R. Parental ControlManage when and how connected devices can access the Internet. Guest NetworkKeep your main network secure by creating a separate network for guests. Advanced EncryptionEnsure your wireless connection is safe from intruders with the wireless encryption standards. K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
