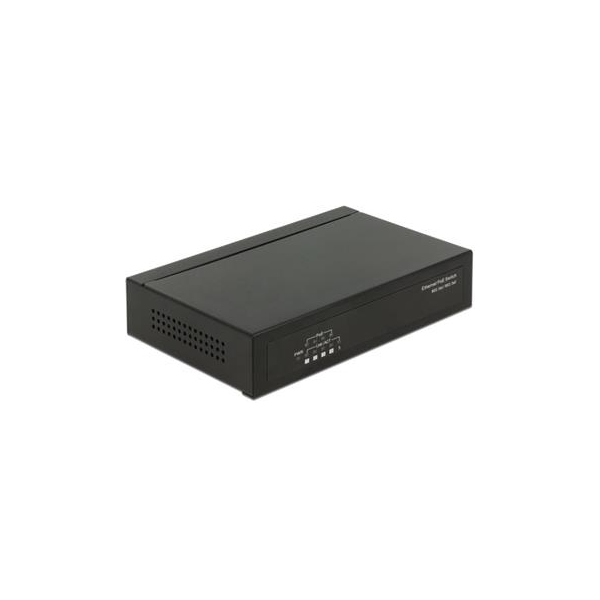

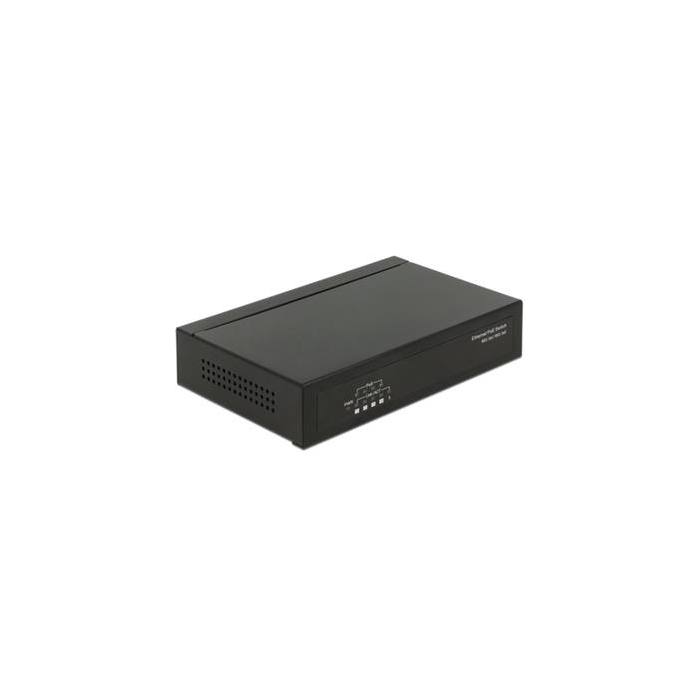

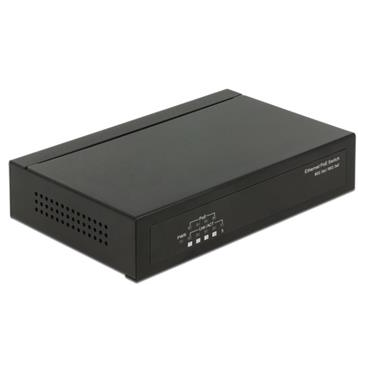

Delock 10/100 Ethernet Switch 4+1 Port PoE+

This Fast Ethernet Switch by Delock can be used to connect different network components. The four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable. In addition, a fifth RJ45 uplink port is available without PoE function. Specification • Connector: 4 x RJ45 female for 10/100 Mb/s Ethernet (PoE+) 1 x RJ45 female for 10/100 Mb/s Ethernet (Uplink) 1 x DC female 5.5 x 2.1 mm (power) • Data transfer rate up to 100 Mb/s • LEDs for status monitoring: Power, Link / Activity, PoE • Supports IEEE802.3 10Base-T and 802.3u 100Base-TX • Supports IEEE802.3at (PoE+) and 802.3af (PoE) • Spare-Pairs power transmission (Mode B, pairs 4/5 and 7/8) • Power supply: max. 30 W per PoE Port, max. 60 W total • Power consumption: max. 72 W • Metal housing • Fanless • Dimensions (LxWxH): ca. 141 x 94 x 26 mm Power supply specification • Power supply with IEC connector • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 2.0 A • Output: DC 52 V / 1.38 A • Ground outside, plus inside • Dimensions: inside: o ca. 2.1 mm outside: o ca. 5.5 mm length: ca. 9 mm System requirements • Device with one free RJ45 port Package content • PoE switch • External power supply • Power cord • User manual Package • White Box Interface Input 1 x 5 V DC female 5,5 mm x 2,1 mm 1 x RJ45 female Output 4 x RJ45 female (PoE) Technical characteristics Data transfer rate Fast Ethernet up to 100 Mbps Physical characteristics Housing colour: black Housing: metal Length 141 mm Width 94 mm Height 26 mm Power supply Type Power supply with IEC connector Input AC 100 - 240 V / 50 - 60 Hz / 2.0 A Output 52 V / 1.38 A Connector DC male 5,5 mm x 2,1 mm
