Základný opis

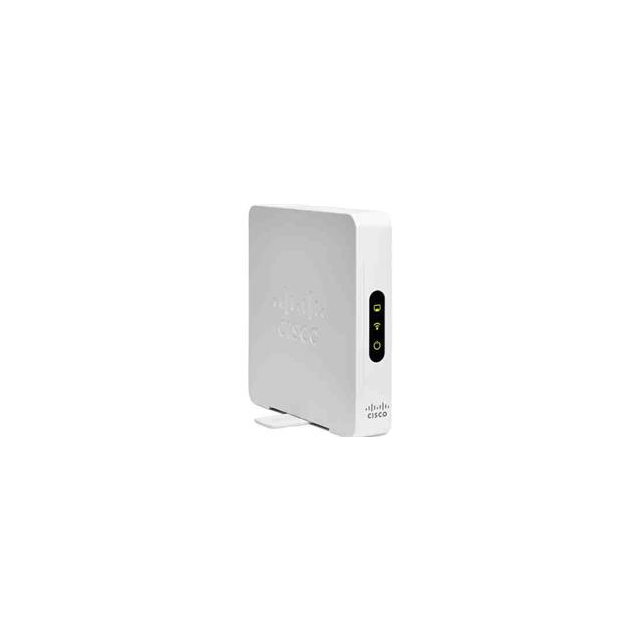

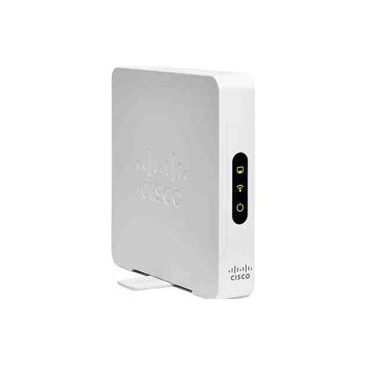

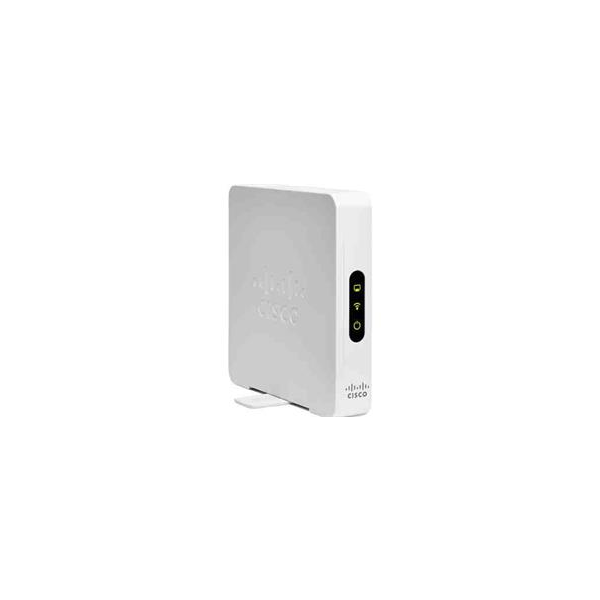

Přístupový bod Cisco WAP131 pracuje v pásmech 2.4 a 5 GHz a podporuje teoretické rychlosti až 300 + 300 megabitů za sekundu (802.11 a/b/g/n kompatibilní). Je vybaven jedním portem Gigabit Ethernet 10/100/1000 Mb/s s podporou standardu pro napájení po Ethernet síti 802.3af/at PoE. Můžete tak zvolit napájení jaké bude vyhovovat pro dané umístění, PoE nebo externí zdroj. Kvalitní pokrytí signálem zajišťuje systém interních antén. Podporovány jsou provozní režimy Access Point, WDS Bridging a Workgroup Bridge.
Cisco SB ReFresh (RF) Cisco SB ReFresh produkty jsou opravené výrobky se stejnými vlastnostmi i zárukami jako zcela nové. Podpora
Stejná jako u nových produktů
Záruka
Stejná jako u nových produktů
Cena
Od 65% off k ekvivalentnímu novému Cisco produktu v GPL
Hardware Produkt byl technicky změněn, aby opravil a odstranil nedostatky jako:
Poddajnost, bezpečnost nebo nebezpečí požáru
Provozní nebo konstrukční vady, které způsobí negativně na zákazníky
Neshody s technickými specifikacemi produktu
Software
Platné licencování od společnosti Cisco. Chcete-li se dozvědět více, navštivte stránku s licenční stránku koncového uživatele společnosti Cisco.
Vzhled
Žádné kosmetické defekty na viditelných plochách. Může obsahovat drobné nedostatky týkající se podstavy a zadní části.
Balení
Zabaleno stejně jak nový produkt užitím pěnové ochrany a antistatického obalu.
Standards
IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)
Cabling type
Category 5e or better
Antennas
Internal antennas optimized for desktop installation with vertical orientation
LED indicators
Power, WLAN, LAN
Operating system
Linux
Physical Interfaces
Ports
10/100/1000 Ethernet, with support for 802.3af/at PoE, Power Port for AC adapter
Power Supply
External 12V 1.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af/at PoE
Buttons
Reset button, Power (on/off), Push button
Lock slot
Slot for Kensington lock
LEDs
Power, Wireless, Ethernet
Physical Specifications
Physical dimensions (W x D x H)
6.693 x 6.693x 1.413 in. (170 x 170 x 35.9 mm)
Weight
0.89 lb (0.40kg)
Network Capabilities
VLAN support
Yes
Number of VLANs
1 management VLAN plus 8 VLANs for SSIDs
802.1X supplicant
Yes
SSID-to-VLAN mapping
Yes
Auto channel selection
Yes
Spanning tree
Yes
Load balancing
Yes
IPv6
Yes
? IPv6 host support
? IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.
Layer 2
802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN
Security
WPA and WPA2
Yes, including Enterprise authentication
Access control
Yes, management access control list (ACL) plus MAC ACL
Secure management
HTTPS
SSID broadcast
Yes
Rogue-access-point detection
No
Mounting and Physical Security
Mounting options
Desktop only
Physical security lock
Kensington lock slot
Quality of Service
Quality of service (QoS)
Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS
Performance
Wireless throughput
Up to 300-Mbps data rate (real-world throughput will vary)
Recommended user support
Up to 32 connective users, 16 active users per radio
Configuration
Web user interface
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Management
Management protocols
Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote management
Yes
Event logging
Local, remote syslog, email alerts
Network diagnostics
Logging and packet capture
Web firmware upgrade
Firmware upgradable through web browser, imported/exported configuration file
Dynamic Host Configuration Protocol (DHCP)
DHCP client
IPv6 host
Yes
HTTP redirect
No
Wireless
Frequency
Dual concurrent radios (2.4 and 5 GHz)
Radio and modulation type
Dual radio, orthogonal frequency division multiplexing (OFDM)
WLAN
802.11n
2x2 multiple-input multiple-output (MIMO) with 2 spatial streams
20, and 40 MHz for 802.11n
PHY data rate up to 600 Mbps
Data rates supported
802.11a/b/g:
? 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
? 802.11n: 6.5 to 300 Mbps
? 20-MHz bandwidth: MCS 0-15 for supported data rates
? 40-MHz bandwidth: MCS 0-15 for supported data rates
Frequency Band and 20-MHz Operating Channels
A Regulatory Domain:
? 2.412 to 2.462 GHz; 11 channels
? 5.180 to 5.240 GHz; 4 channels
? 5.745 to 5.825 GHz; 5 channels
E Regulatory Domain:
? 2.412 to 2.472 GHz; 13 channels
? 5.180 to 5.240 GHz; 4 channels
C Regulatory Domain:
? 2.412 to 2.462 GHz; 11 channels
? 5.745 to 5.805 GHz; 4 channels
Maximum Number of Nonoverlapping Channels
2.4 GHz
? 802.11b/g
? 20 MHz: 3
? 802.11n
? 20 MHz: 3
5 GHz
? 802.11a
? 20 MHz: 9
? 802.11n
? 20 MHz: 9
? 40 MHz: 4
Wireless isolation
Wireless isolation between clients
External antennas
None
Internal antennas
Internal Fixed PiFA Antenna
Antenna gain in dBi
Maximum antenna gain of 3.4 dBi on 2.4 GHz
Maximum antenna gain of 4.5 dBi on 5 GHz
Wireless distribution system (WDS)
Yes
802.11i
Yes
Multiple SSIDs
8
Wireless VLAN map
Yes
WLAN security
Yes
Wi-Fi Multimedia (WMM)
Yes, with unscheduled automatic power save
Operating Modes
Access point
Access Point mode, WDS Bridging, Workgroup Bridge mode
Environmental
Power options
IEEE 802.3af/at Ethernet switch
Cisco Power Injector - SB-PWR-INJ2-xx
AC Adapter - included 12v1.5A
PoE Peak power: 7.42W
Compliance
Safety:
? UL 60950-1
? CAN/CSA-C22.2 No. 60950-1
? IEC 60950-1
? EN 60950-1
Radio approvals:
? FCC Part 15.247, 15.407
? RSS-210 (Canada)
? EN 300.328, EN 301.893 (Europe)
? AS/NZS 4268.2003 (Australia and New Zealand)
EMI and susceptibility (Class B):
? FCC Part 15.107 and 15.109
? ICES-003 (Canada)
? EN 301.489-1 and -17 (Europe)
Operating temperature
0° to 40°C (32° to 104°F)
Storage temperature
-20° to 70°C (-4° to 158°F)
Operating humidity
10% to 85% noncondensing
Storage humidity
5% to 90% noncondensing
System memory
128-MB RAM
128-MB Flash
Package Contents
* Cisco WAP131 Wireless-N Dual Radio Access Point
* AC Power Adapter
* User guide on CD-ROM
* Quick-start guide
* Ethernet network cable
Minimum Requirements
* Switch or router with PoE support, PoE injector, or AC Power Adapter
* Web-based configuration: Java-enabled web browser
Warranty
Access point
Limited lifetime
