| Part No | 90NB12V3-M00620 |
| Model Name | UX5304MA-OLED040W |
| TTV | 2024-02-27 |
| End of Production | 2024-12-31 |
| EAN Code | |
| UPC Code | |
| WEEE | |
| BASE UNIT | VSNB12V3-BU1100 |
| |

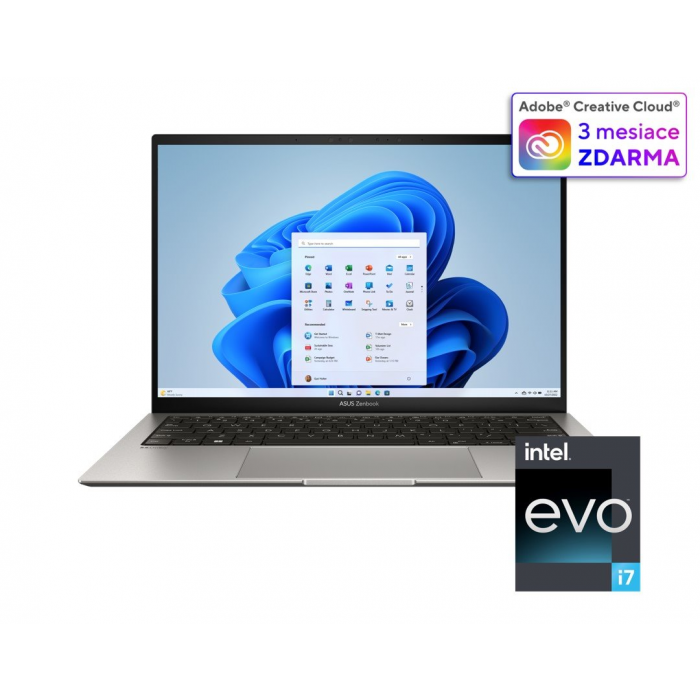

| Marketing Name | ASUS Zenbook S 13 OLED |
| Operating System | Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material | Aluminum |
| LCD cover-color | Ponder Blue |
| Top case-material | Mg-Al |
| Top case-color | Ponder Blue |
| Keyboard color | Blue |
| Bottom case-material | Aluminum |
| Bottom case-color | Ponder Blue |
| Military grade | US MIL-STD 810H military-grade standard |
| Touch Panel | Non-touch screen |
| Panel Size | 13.3-inch |
| Resolution | 3K (2880 x 1800) OLED 16:10 aspect ratio |
| Response time | 0.2ms response time |
| Refresh rate | 60Hz refresh rate |
| Peak Brightness | 600nits HDR peak brightness |
| Color gamut | 100% DCI-P3 color gamut |
| Gamut mapping | Yes |
| Contrast ratio | 1,000,000:1 |
| VESA CERTIFIED Display HDR | VESA CERTIFIED Display HDR True Black 500 |
| Color depth | 1.07 billion colors |
| Pantone | PANTONE Validated |
| Glare | Glossy display |
| Low blue light | 70% less harmful blue light |
| T?V Rheinland-certified | TÜV Rheinland-certified |
| SGS Eye Care Display | SGS Eye Care Display |
| Intel Athena Program | Intel® Evo™ Platform |
| Processor | Intel® Core™ Ultra 7 Processor 155U 1.7 GHz (12MB Cache, up to 4.8 GHz, 10 cores, 12 Threads) |
| Chipset | N/A |
| Discrete/Share | Share |
| Intergrated GPU | Intel® Iris Xe Graphics |
| Disclaimer for Intel Iris Xe | *Intel Iris X? Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory. |
| VRAM | N/A |
| How to upgrade memory | Not Available |
| Expansion Slot(includes used) | N/A |
| On board memory | 16GB LPDDR5X on board |
| Total System Memory | LPDDR5X 16GB |
| Storage | 1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera | FHD camera with IR function to support Windows Hello |
| on board Wireless | Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Touchpad | Touchpad |
| FingerPrint | N/A |
"| I/O ports | 1x USB 3.2 Gen 2 Type-A
2x Thunderbolt™ 4 supports display / power delivery
1x HDMI 2.1 TMDS
1x 3.5mm Combo Audio Jack |
"
"| Audio | Smart Amp Technology
Built-in speaker
Built-in array microphone
harman/kardon (Premium) |
"
| Voice control | with Cortana voice-recognition support |
| AC Adapter | TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal |
| Battery | 63WHrs, 2S2P, 4-cell Li-ion |
| Replaceable Battery | No |
| Keyboard type | Backlit Chiclet Keyboard |
| Dimension (WxHxD) | 29.62 x 21.63 x 1.09 ~ 1.18 cm (11.66" x 8.52" x 0.43" ~ 0.46") |
| Weight (with Battery) | 1.00 kg (2.20 lbs) |
| Weight (without Battery) | 0.80 kg (1.76 lbs) |
| Antivirus | McAfee® 30 days free trial |
"| Security | McAfee® 30 days free trial
IR webcam with Windows Hello support
McAfee®
Trusted Platform Module (TPM) 2.0 |
"
"| MyASUS feature | System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
Link to MyASUS
TaskFirst
Live update
ASUS OLED Care
AI Noise Canceling |
"
"| Built-in Apps | MyASUS
ScreenXpert
GlideX |
"
"| Adobe Creative Cloud Hard Bundle | Three-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to August 31, 2024. |
"
| Included in the Box | Sleeve |
| Reparability Index (for France) | 8.3 |
| |
| Záruka | Celosvetová záruka na hardvér 2 roky, 1 rok záruka na batériový článok |
